I-235 Broadway Extension Corridor Widening and I-44 Interchange

Oklahoma County, Oklahoma

A complicated and traffic-choked interchange had to be replaced.

At what once was the crossroads of Dallas-to-Kansas City trail drives and the Chicago-to-Los Angeles trade route, two Interstate Highways, I-44 and I-235, now intersect. Increasing transcontinental traffic on the I-44 corridor and a heavily traveled north-south railway created the need for a critical and challenging update to the interchange. Benham, a Haskell Company, was selected for its team’s big-picture vision for the interchange, insightful attention to construction traffic control, strong bridge design staff and innovative solutions to minimize disruption to the traveling public.

We introduced groundbreaking techniques on the unprecedented project.

The project was divided into five construction contracts with a total estimated cost of $220 million, the largest project cost in the Oklahoma Department of Transportation (ODOT) history at the time. Two phases of the project were significant firsts in state history. One was the first four-level highway interchange on the ODOT highway system. The other was the erection of two railroad truss spans, each measuring 275 yards long and 45 feet high and weighing 2 million pounds, to carry a single mainline track for the BNSF Railroad. Benham crafted project documents that instructed the contractor to use Accelerated Bridge Construction (ABC) techniques, performing truss member assembly 1/4 mile north of the final location and using Self-Propelled Modular Transports (SPMTs) to move the trusses into position.

Planning and innovation allowed minimal disturbance and early completion.

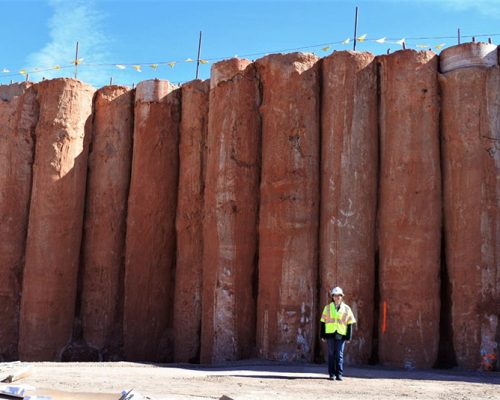

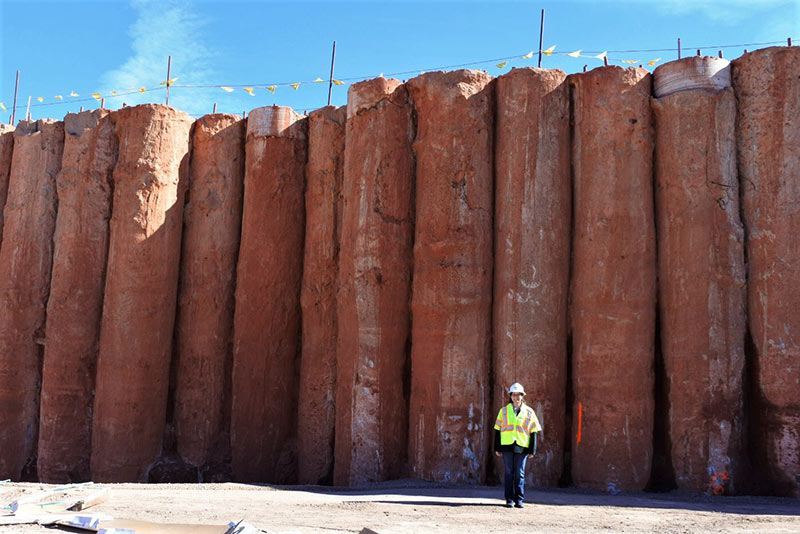

Benham’s innovating planning allowed the bridge move-in to occur with the highway’s full closure over a two-and-a-half-day weekend. The SPMTs stopped to enable trains to pass unhindered throughout, yet work concluded nearly a full day ahead of schedule, before the Monday-morning rush hour. Further, retaining walls of up to 30 feet in height were designed using adjoining drilled shafts in a “tangent pile” configuration to retain existing embankments. This innovative construction technique allowed the project to proceed without relocating the adjoining businesses or interfering with the railroad embankment. Ultimately, with careful planning by ODOT and Benham and skillful execution by the contractor, the project was completed nearly a year ahead of the original schedule.

  • Multi-Level Interstate Interchange
  • Three Interchanges with Local Streets
  • Sixteen Bridges
  • Railroad Truss Bridge

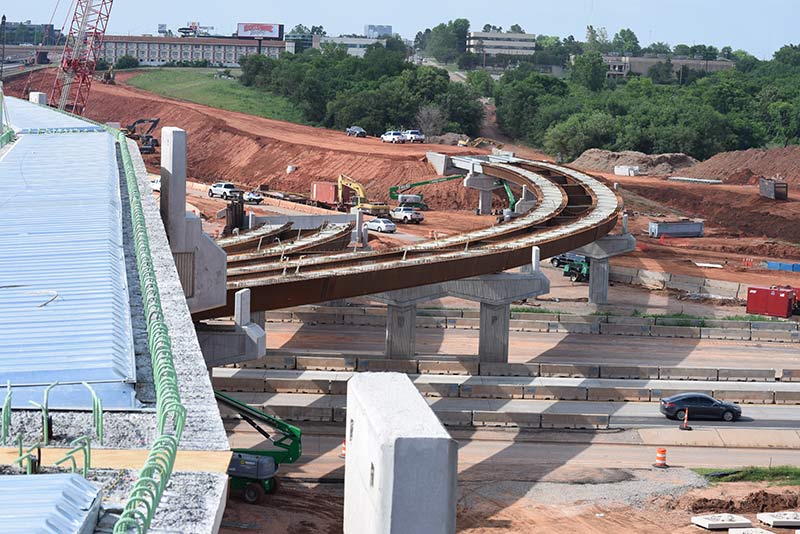

  • Three Braided Ramp Bridges
  • Retaining Walls
  • Five Construction Projects
  • Construction Sequencing
  • Intelligent Transportation Systems (ITS)
  • CCTV cameras for traffic monitoring
  • Interchange lighting design
  • Signing
  • Pavement marking
  • Traffic signalization
  • Multiple construction phases
  • Hydraulics
  • Interchanges and ramps
  • Traffic studies
  • Traffic Management Plan
  • Utility relocation
  • Streetscape
  • Railroad Truss Bridge Design
  • Truss Move-In by Self-Propelled Modular Transports (SPMT)
  • Drilled Shaft Retaining Walls constructed without disturbing active rail traffic in close proximity American Association of State Highway Officials (AASHTO) standards
  • Public involvement
  • Grand Conceptor Award from American Council of Engineering Companies (ACEC) – Oklahoma Chapter
  • Gold Award (Projects Completed in 2019 Divided Highways Urban Category) from the American Concrete Pavement Association (APWA) – Oklahoma Chapter
  • Project of the Year Award (Transportation More Than $75 Million Category) from American Public Works Association (APWA) – Oklahoma Chapter
  • Best Project Award (Projects Completed in 2018 Highway/Bridge Category) from the Engineering News Record – Texas & Louisiana Region
  • American Railway Engineering and Maintenance-of-Way Association (AREMA) components
Vice President & Division Leader – Transportation

Related Projects

Innovative thinking was not just encouraged, it was required. Benham worked with us hand-in-hand to provide innovative solutions to the challenge."

Brian Taylor
Chief Engineer, Oklahoma Department of Transportation

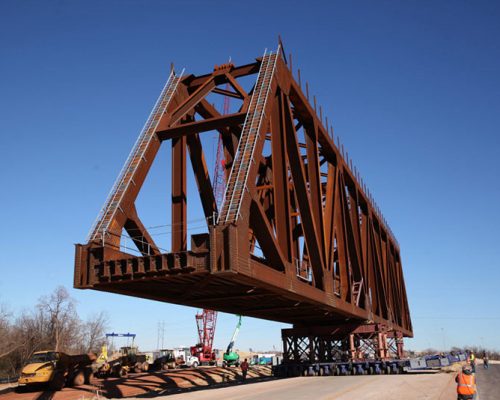

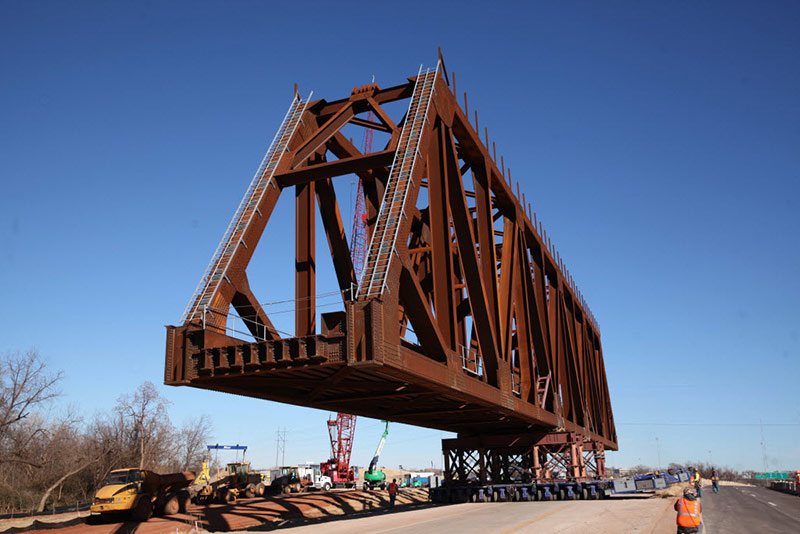

Steel railroad bridge truss prior to installation

Innovative thinking was not just encouraged, it was required. Benham worked with us hand-in-hand to provide innovative solutions to the challenge."

Brian Taylor
Chief Engineer, Oklahoma Department of Transportation

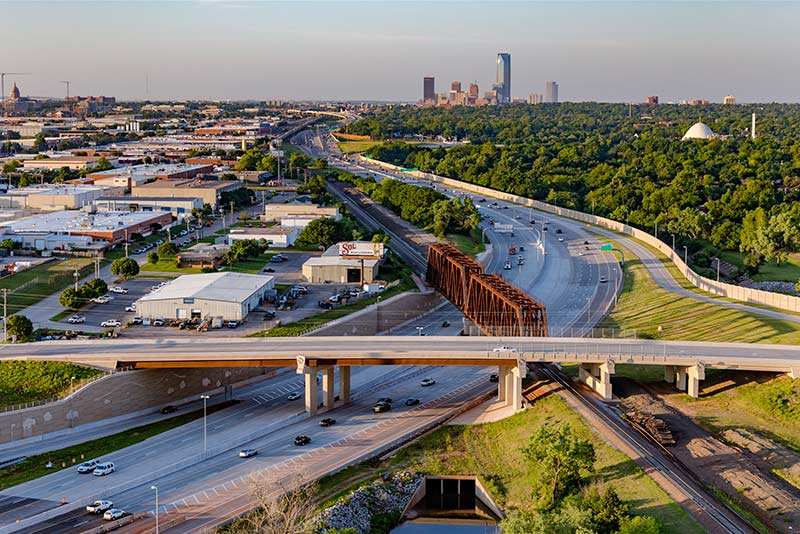

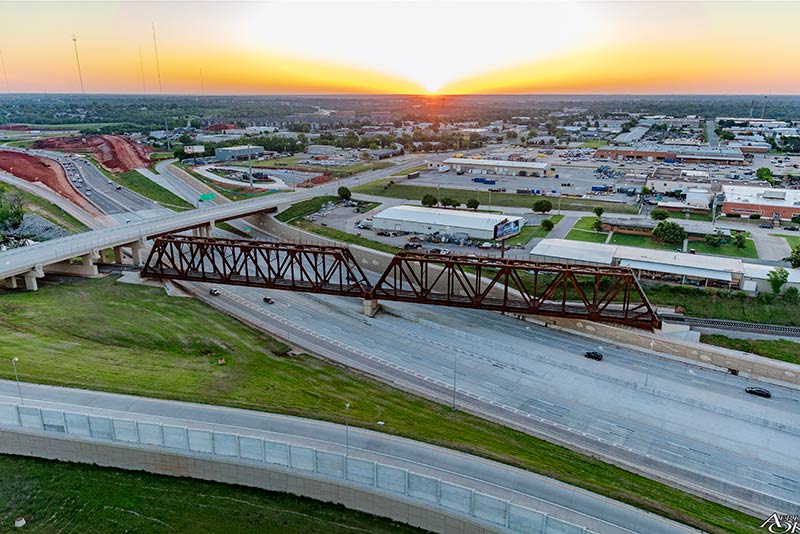

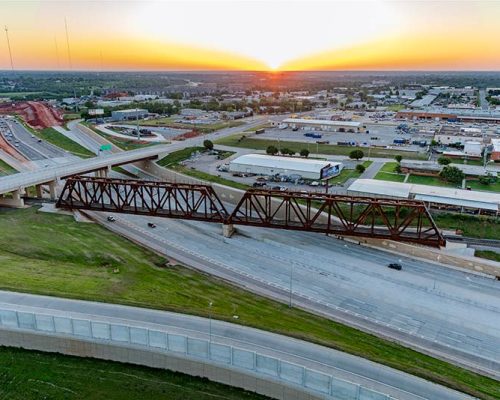

Aerial view of I-235 Broadway Extension Corridor project adjacent to Central Business District
